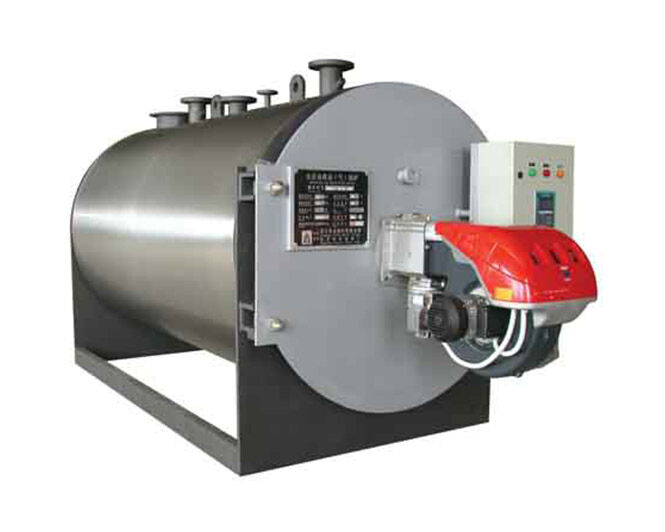

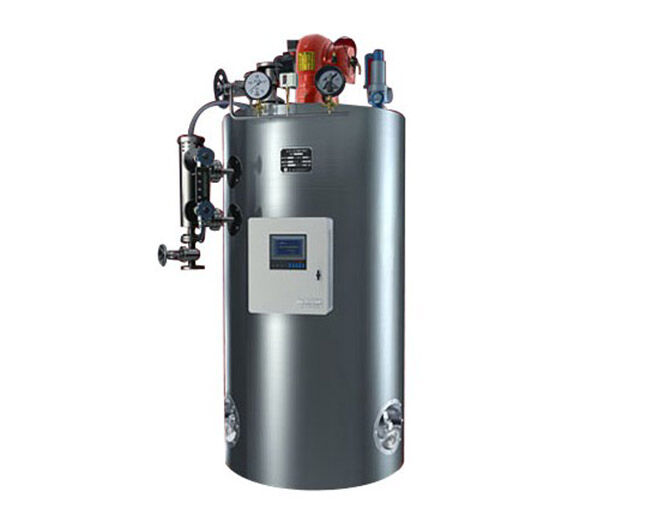

Oil/gas fired hot water boiler
The large-volume flame tube and the smoke tube bundle are perfectly matched to one another. The boiler is characterized by a very compact construction. The flame tube, internal water-flushed rear flue gas reversing chamber, first smoke tube and second smoke tube are all arranged for optimum flow within the cylindrical pressure vessel. In interplay with one another, the radiant and convection heating surfaces promote rapid water circulation, thereby accelerating the passage of steam bubbles to the steam chamber. The heat supplied by the fuel is converted into steam quickly and with no material stress due to an even transfer of heat. The large water chamber offers sufficient storage volume to be able to accommodate sudden peaks in demand.

Product introduction

Overview:

The large-volume flame tube and the smoke tube bundle are perfectly matched to one another. The boiler is characterized by a very compact construction. The flame tube, internal water-flushed rear flue gas reversing chamber, first smoke tube and second smoke tube are all arranged for optimum flow within the cylindrical pressure vessel. In interplay with one another, the radiant and convection heating surfaces promote rapid water circulation, thereby accelerating the passage of steam bubbles to the steam chamber. The heat supplied by the fuel is converted into steam quickly and with no material stress due to an even transfer of heat. The large water chamber offers sufficient storage volume to be able to accommodate sudden peaks in demand.

Benefit:

Control system: automatic control, PLC system

Burner: adopting of world top grade brand burner to ensure the boiler heating efficiency and improve boiler quality

100% corrugated furnace: provides large space for combustion and excellent heating flexibility

Wet-back: design as 100% of water cover fire concept, enhance the heat efficiency

Accessories and electric control: mounted with all necessary accessories and electric control system, then tested in house, for making the boiler installation job the most convenience

Construction:

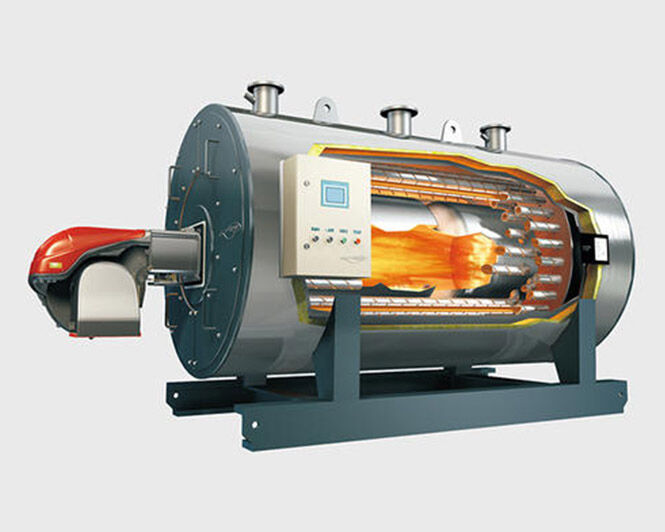

Three pass fire chamber. The flame tube (first pass) and two smoke tube bundles (second and third pass) are integrated in an ideal manner into the pressure vessel together with the water-flushed rear reversing chamber. The laterally positioned flame tube and the horizontal rear and vertical front heating gas reversal produce a large radiant and convection heating surface with a large steam chamber, but the external dimensions remain small. The floors are anchored stably by the large continuous flame tube and they are ingeniously connected with the boiler shell using gusset stays for even load distribution.

Technical parameters

WNS boiler

Model
WNS0.35WNS0.7WNS1.05WNS1.4WNS2.1WNS2.8WNS3.5WNS4.2WNS5.6WNS7WNS8.4WNS10.5WNS14
Rated thermal powerMW0.350.71.051.42.12.83.54.25.678.410.514
Rated working pressureMPa0.7/1.00.7/1.0/1.251.0/1.25/1.6
Rated water output temperature90/9595/115/130115/130/150
Rated return water temperature7070/90
Working efficiency%≥92
Fuel/Diesel oil, heavy oil, natural gas
Rigelman darkness/≤ Grade 1
Fuel consumptionDiesel oilKg/h3264951261922523203845126407689601280
Heavy oilKg/h3465981311952623253905206507809751300
Natural gasNm3/h387611415222830438045660876091211401520
Power consumptionDiesel oilKw0.373.64.86.29.51317.52125.5335659.575
Heavy oilKw3.7516.81819.422.526.230.743.447.955.477.577.5109.1
Natural gasKw0.373.64.86.29.51317.52125.5335255.573.5
Dimension of boiler bodyLengthmm2300304631744094445051125380560062206690708072007720
Widthmm1338148816881795218022602305239327822830310033303530
Heightmm1720179519642115254826282754289831403378365037484165
Boiler weight (empty)ton2.683.15.06.59.511.513.214.72226.23034.443
Boiler weight (full load)ton4.14.67.610.515.617.919.22537435258.669

SZS boiler

Model
SZS2.8SZS4.2SZS7.0SZS10.5SZS14SZS21SZS29SZS42SZS58
Rated thermal powerMW2.84.27.010.51421294258
Rated working pressureMPa0.7/1.0/1.251.0/1.25/1.6
Rated water output temperature95/11595/115/130/150
Rated return water temperature7070/90
Working efficiency%≥92
Fuel/Diesel oil, heavy oil, natural gas
Rigelman darkness/≤ Grade 1
Fuel consumptionHeavy oilKg/h282415.3682.51025.613832065.8273044085484.5
Natural gasNm3/h3204487711158.81532.2233430814621.95739.5
Shipping dimension of the biggest partLengthmm5804613062007200720010357103261052410524
Widthmm293229763350123212321240124014721472
Heightmm351635163682138216771694139017641764
Installation dimensionLengthmm736477209039106161061613452134521345213452
Widthmm4077395050487343737862467900105201052
Heightmm427643524500671867187260776077607760
Deliver type/PackagedIn bulk
