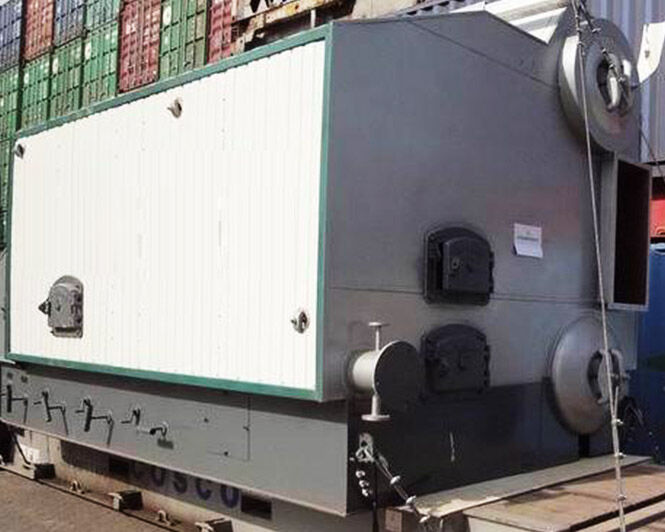

Coal fired hot water boiler
Our coal fired boiler adopt double drum water tube structure, evaporation capacity is bigger than normal design boiler. Special patent technology increase working efficiency and reduce emission.

Product introduction

Overview:

Our coal fired boiler adopt double drum water tube structure, evaporation capacity is bigger than normal design boiler. Special patent technology increase working efficiency and reduce emission.

Benefit:

1.Double drum design, water tube structure, heating area is 10% more than other same kind products. Output capacity is much stronger than others.

2.The fire chamber has a special design—cyclone re-burning chamber, which reduce the dust content of emission and make the carbon black powder burning completely. It will increase the boiler efficiency and reduce the concentration of emission.

3.Compact structure, reliable operation and longer service life.

4.The grate use small roller structure and boundary grate technology, which Improving the reliability of operation.

5.Use patent technology: closed type wind chamber and double side grate air-adjusting device. Use conical surface sealing structure which is processed by machinery, it increases the sensitivity of the grate’s air-adjusting.

Construction:

Boiler adopts double drum water tube structure, horizontal type construction. The Fire chamber has a special design—cyclone re-burning chamber. Use closed type wind chamber and double side grate air-adjusting device to increase evaporation capacity.

Technical parameters

Packaged boiler

Model
QXG 0.35-0.7/95/70-AIISZG0.35-0.7/95/70-AIISZL0.7-0.7/95/70-AII 2SZL1.4-0.7/95/70-AII 2SZL2.8-0.7/95/70-AII 2SZL4.2-0.7/95/70-AII 2SZL4.2-1.0/115/70-AIISZL5.6-0.7/95/70-AIII
Rated thermal powerMW0.350.350.71.42.84.24.25.6
Rated working pressureMPa0.70.70.70.70.70.71.00.7
Water output temperature95959595959511595
Water return temperature7070707070707070
Grate efficient aream21.00.931.2934.67.237.238.6
Heating area of boiler bodym217.222.5933.3969.4115.3157.6137.6196.9
Heating area of economizerm2//////55.5/
Coal consumptionKg/h65871563025968979741105
Exhaust temperature195160195190190190160170
Emission concentrationmg/Nm3<80<80<80<80<80<80<80<80
Working efficiency%747875.1978.880.481.5678.18*81.5
Heating aream23000300060001200024000360003600048000
Shipping size of the biggest partmm2620x1650x17802750x1840x29704080x2150x28625960x2690x34626510x3130x34627830x3480x34627170x3270x36128820x3480x3462
Shipping weight of the biggest partton4.56152028363645
Installation sizemm3000x2000x20003000x1840x30005355x3550x32626495x4963x38627045x5197x38628365x5332x 386212437x3795x40129380x5332x3862

Note:

The coal consumption is calculated as bituminous coal (Qdw=21320KJ/Kg)

This form is only for your reference, please ask the latest data if you need.


Assembly boiler


Model
SZL4.2-0.7/ 95(65)/70(45)-AIISZL5.6-0.7/95/ 70-AIISZL7.0-1.0/115/ 70-AIISZL10.5-1.0/115/ 70-AII
Rated thermal powerMW4.25.67.010.5
Rated working pressureMPa0.70.71.01.0
Water output temperature95(65)95115115
Water return temperature70(45)707070
Grate efficient aream27.239.911.9917.38
Heating area of boiler bodym2157.6240.2243.2324
Heating area of economizerm2//174.4236
Coal consumptionKg/h896.6(943)1186.61507.62258
Exhaust temperature175(161)175170170
Emission concentrationmg/Nm3<80<80<80<80
Working efficiency%79.279.5982.1782.3
Shipping size of the biggest partmm7830x3480x34606720x3400x35408800x3230x26009900x3400x3530
Shipping weight of the biggest partton3626.430.1536
Installation sizemm8370x5330x38609000x5000x560011320x3600x540013000x4500x5800

Note:

The coal consumption is calculated as bituminous coal (Qdw=21320KJ/Kg)

This form is only for your reference, please ask the latest data if you need.
