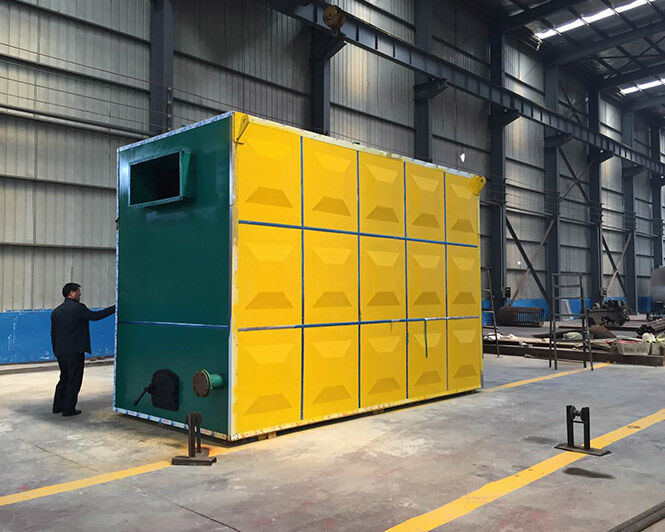

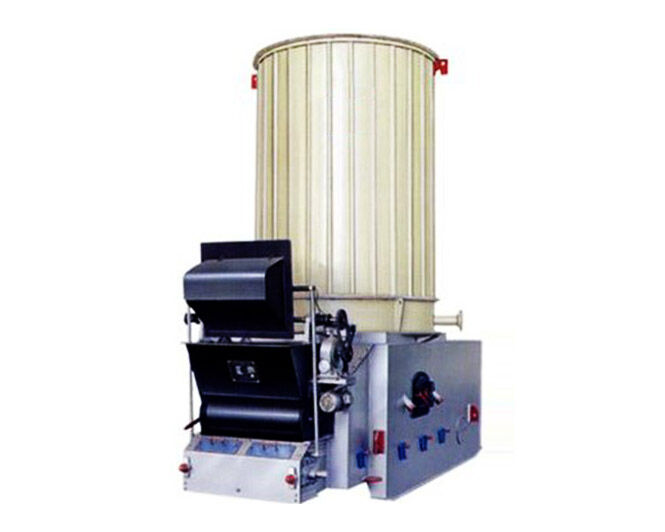

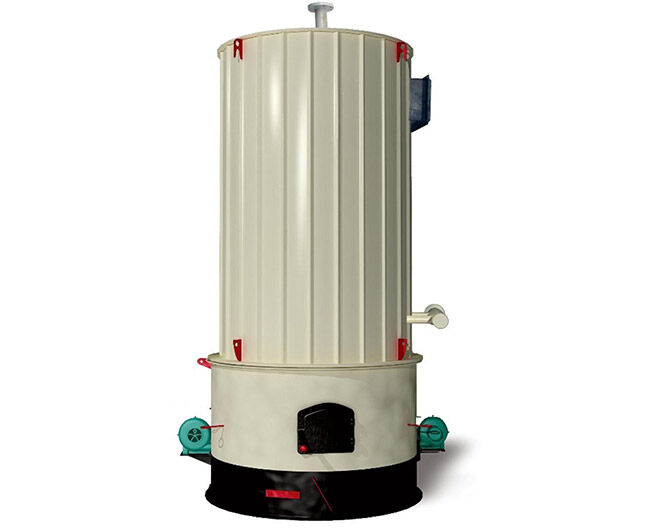

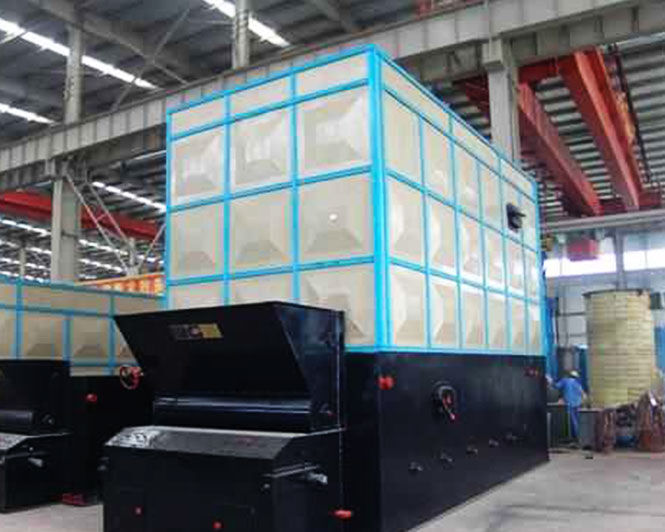

Coal/biomass fired thermal fluid boiler
Thermal fluid (hot oil) boiler is a heat exchange system which uses high temperature thermal fluid as heat transfer medium. It could supply high temperature but with low working pressure. Thermal fluid circulate system is a closed loop, compare to steam boiler, it could save about 50% energy. This kind boiler is widely used in food processing industry, chemical industry, rubber industry and etc.

Product introduction

Overview:

Thermal fluid (hot oil) boiler is a heat exchange system which uses high temperature thermal fluid as heat transfer medium. It could supply high temperature but with low working pressure. Thermal fluid circulate system is a closed loop, compare to steam boiler, it could save about 50% energy. This kind boiler is widely used in food processing industry, chemical industry, rubber industry and etc.

Benefit:

It could get higher temperature under lower working pressure.

Stable heating and accurate temperature control.

Heating efficiency can be kept in best level under different working load.

Saving power, water and investment.

Construction:

Heating surface adopts coil tube and serpentine tube structure, increase heating area and reduce equipment’s height. Combustion system use chain grate, reduce operator’s workload.

Technical parameters
Boiler model
YGL0.012YGL0.12YGL0.24YGL0.35YGL0.45YGL0.7YGL0.95YGL1.2YGL1.4YGL1.8
Thermal powerMW(104kcal)0.012 (1)0.12(10)0. 24(20)0.35(30)0. 45(40)0. 7(60)0.95 (80)1.2 (100)1.4 (120)1.8(160)
Thermal efficiency%>70>65>65>70>70>70>70>72>70>70
Rated working pressureMPa0.71.01.01.01.01.00.70.71.01.0
Coal consumptionKg/h2.121.95361.282.9145228.8315320380
Heating aream23.06142348.28556374.374.3/3486.497
Rated working temperature280300300300300300300300300300
Thermal fluid holding capacitym30.0110.210.250.380.60.80.860.90.951.26
Thermal fluid circulating capacitym32.128.2216.723.84051.955.369.8981.5106
Overall dimensionsmmΦ1000x1400Φ1640x2540Φ1770x2760Φ1950x3360Φ2090x3790Φ2090x4440Φ2340x5050Φ2340x5080Φ2470x5340Φ2450x6080
Total powerKW1.55.16.610.251523.626.2541.2543.9546.5
Dia. of connecting pipe DNmm2540508080100125125125125
Total weightkg130028823630486063056607916592351021211655

Note:

The coal consumption is calculated as bituminous coal (Qdw=21320KJ/Kg)

This form is only for your reference, please ask the latest data if you need.

Boiler model
YLL0.95YLL1.2YLL1.4YLL1.8
Thermal power MWMW(104kcal)0.95(80)1.2(100)1.4 (120)1.8 (150)
Thermal efficiency%>70>74>74>74
Rated working pressureMPa0.70.71.00.7
Coal consumptionKg/h275326251407
Heating aream274.374.3/3486.2/27.5107.3/32
Rated working temperature300300300300
Thermal fluid holding capacitym30.860.90.951.26
Thermal fluid circulating capacitym355.3369.981.584.1
Overall dimensionsmm4750x2162x53704750x2162x54605050x2165x53305850x2162x4890
Total powerKW25.540.541.7545.75
Dia. of connecting pipe DNmm125125125125
Total weightkg16432166001899022022

Note:

The coal consumption is calculated as bituminous coal (Qdw=21320KJ/Kg)

This form is only for your reference, please ask the latest data if you need.

Boiler model
YLW1.8YLW2.4YLW3.5YLW4.2YLW5.0YLW6.0YLW7.0YLW9.5YLW12YLW14
Thermal power MWMW(104kcal)1.8 (150)2.4(200)3.5(300)4.2(360)5.0(420)6.0(500)7.0(600)9.5(800)12(1000)14(1200)
Thermal efficiency%>74>74>74>75>74>76>76>76>76>76
Rated working pressureMPa0.70.71.01.01.01.00.71.01.01.0
Coal consumptionKg/h407517791943112813231546200824702932
Heating aream283.6/3283.6/32180255291413.5479582.4735.4799.4
Rated working temperature300300320320300300300300300300
Thermal fluid holding capacitym31.41.62.712.923.013.54.15.46.88.3
Thermal fluid circulating capacitym3104.8134200258300350400400400400
Overall dimensionsmm5850x2162x46805850x2162x46806900x2720x52806600x3200x57507300x3200x57507840x3400x63408720x3400x54009340x3780x587010665x3560x605010865x4120x6600
Total powerKW56.7561.7592.5119.5138142.8153.9157.4188.9225.9
Dia. of connecting pipe DNmm150150159200200250250250250300
Total weightkg235592952932680461804341060023633607872081000113063

Note:

The coal consumption is calculated as bituminous coal (Qdw=21320KJ/Kg)

This form is only for your reference, please ask the latest data if you need.
